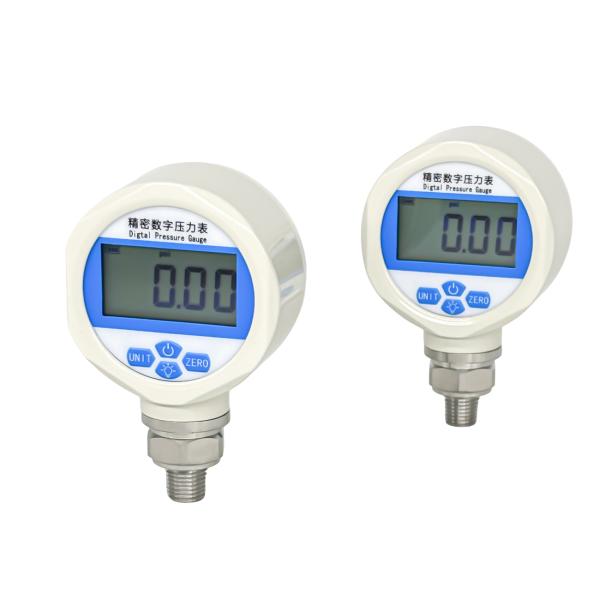

YW-60B High-precision Precision Digital Pressure Gauge Radial Direct Installation

Brand Name : XINYI

Model Number : YW-60B

Place of Origin : China

MOQ : 1

Payment Terms : L/C,D/A,D/P,T/T,Western Union

Supply Ability : 1000pcs/month

Delivery Time : 5-8 work days

Packaging Details : carton

Connections : 1/8 "NPT

Display Mode : Four figures LCD display

Protection Degree : IP65

Connector Size : M14X1.5

Connection Material : SS316L

Display Function : Colour graphic display

Others : rs 232 ,rs485,usb output

Original Place : Made in china

Port : Shanghai or Ningbo

Mounting : Radial Direction Mounting

Explpsion Proof : ExiaIICT4 Ga

Work Temp : -20~80C

Contact Now

YW-60B High-precision Precision Digital Pressure Gauge Radial Direct Installation


The YW-60B precision digital pressure gauge mainly consists of a housing, a pressure sensor, and a signal processing circuit system. It has the following advantages of high-quality pressure sensor core: high precision, strong corrosion resistance, impact resistance, vibration resistance, minimal temperature drift and good stability, as well as low-power microprocessor. Products are classified into gauge pressure, differential pressure, and absolute pressure based on their pressure characteristics; Divided into low, medium, and high pressures according to the pressure range; And it is divided into normal temperature, medium temperature, and high temperature according to the temperature range. This product is mainly used for precise measurement of gases and liquids in industries such as petroleum, chemical, aviation, and other industrial sectors.


Instrument operation function


-Left button: Long press for ≥ 2 seconds to turn on or off the power, short press to switch backlight.
-Right button: When there is no pressure on the instrument, if zero drift occurs, press and hold for ≥ 2 seconds to reset to zero. Short press to switch units.


Product Name Digital Pressure gauge
Range -0.1 to 0 to 40 MPa
Accuracy Class 0.2, 0.25, 0.4, 0.5
Display Dynamic display with up to 5 digits
Overload Pressure 1.5 times the rated pressure
Power Supply 2 AA batteries
Medium Temperature -20°C to 80°C
Operating Temperature Operating Temperature
Operating Humidity ≤80% RH
Standard Thread Interface
M14*1.5 (other threads need to be specified at the time of
order)
